React Router

performed by

Oleksiy Лёша Dubovyk

Concept of a Router

What is a Router?

Why do we need it?

Concept of a Router

In Web Development

Routing is a process of matching of a URL to a View

Concept of a Router

In Single Page Applications (SPAs)

View is a set of components being rendered

Router dynamically loads components and changes what's displayed in the Browser as user navigates the page.

P. S. Without reloading the page

P. P. S. Because it's SPA

Using Router allows to

• Keep UI in sync with the URL
• Bookmark individual SPA pages
• Use Browser history, Back/Forward buttons

React Router

React isn't a framework, it's a library.

Therefore, it doesn't solve all the application's needs.

It does a great job at creating components and managing state,
but creating a more complex SPA requires additional libraries.

React Router

React Router is an external library that manages navigation
and rendering of components in the React applications

React Router v4⁺

First thing to check when looking for a documentation,
an article or a solution at StackOverflow,
it that it is about React Router v4+.

React Router v4⁺

• Way different in its Philosophy and mental model
• Dynamic Routing, no static centralized routing configuration
• Natural Nesting Routes, Code Splitting
• First class React Native support
• Virtually the entire API is Just Components ^TM

https://reacttraining.com/react-router/core/guides/philosophy

React Router v5

• Fully backwards compatible with v4
• Orignally meant to be released as v4.4
• Reason for a major version bump is a single character: ^
• Structural improvements like better support for React 16
• Some new features like using an array in <Route path>

https://reacttraining.com/blog/react-router-v5/

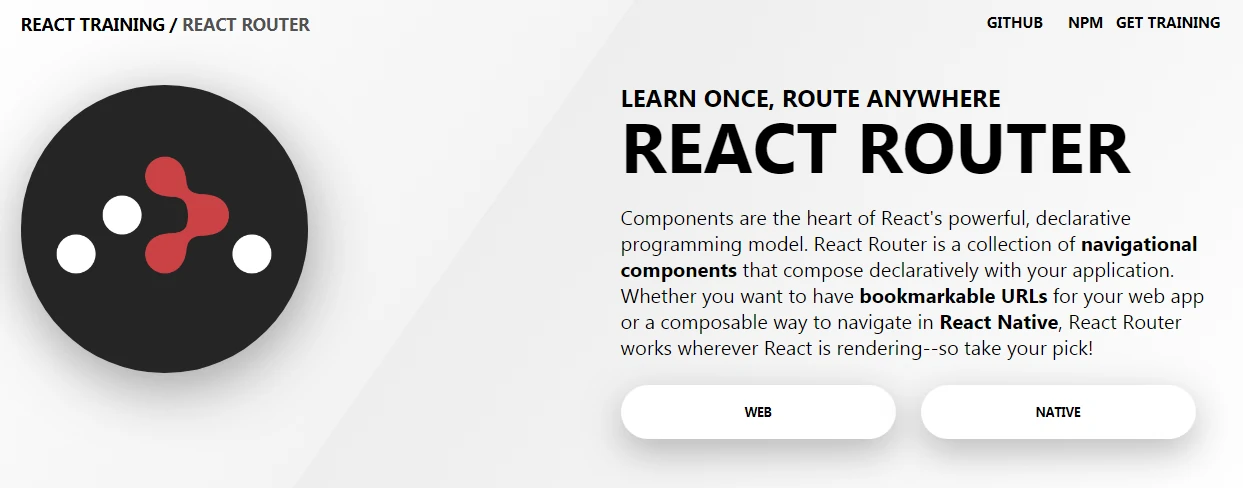

https://reacttraining.com/react-router/

React Router Packages

• Web – react-router-dom package, used for Web Browser
• Native – react-router-native package, used for React Native
• Core – react-router package, dependency, never used directly

React Router is not included in React by default,

so you need to install it on top of React itself:

npm install --save react
npm install --save react-dom
npm install --save react-router-dom

It's not even included in Create React App by default:

npx create-react-app my-app
cd my-app
npm install --save react-router-dom

Basic Components

There are three types of components in React Router:

• Router components
• Route matching components
• Navigation components

Router components

Browser related Router types:

• BrowserRouter – for modern browsers that support HTML5 History API
• HashRouter – for legacy browsers (uses window.location.hash)

BrowserRouter

import { BrowserRouter } from 'react-router-dom';

HashRouter

import { HashRouter } from 'react-router-dom';

BrowserRouter requires a default SPA route to be configured on Server.

Otherwise here's what's happening:

Default SPA route on Express server

const express = require('express');
const path = require('path');

const app = express();

app.use(express.static(path.join(__dirname, '../dist')));

app.get('*', (req, res) => { // SPA default route
    res.sendFile(path.join(__dirname, '../dist/index.html'));
});

app.listen(3000);

Default SPA route on Webpack Dev Server

const path = require('path');

module.exports = {
    devServer: {
        inline: true,
        contentBase: './',
        historyApiFallback: {   // SPA default route
          index: 'index.html'
        }
    },
};

HashRouter is the fallback in case
there is no control of Server side or static HTML.

Like GitHub Pages for example.

Or this presentation.

HashRouter on Static Server

Importing a Router component:

import { BrowserRouter } from 'react-router-dom';

import { HashRouter } from 'react-router-dom';

Renaming to Router on import:

import { BrowserRouter as Router } from 'react-router-dom';

import { HashRouter as Router } from 'react-router-dom';

Coming Soon

Route matching components

There are two route matching components:

• Route
• Switch

Importing the Route matching components

import { Route } from 'react-router-dom';

import { Route, Switch } from 'react-router-dom';

import { BrowserRouter, Route, Switch } from 'react-router-dom';

Route matching

• Route matching is done by comparing a
  <Route path> prop to the current location.pathname.
• When a <Route> matches it will render its content
  and when it does not match, it will render null.
• A <Route> with no path will always match.

Route matching

// when location.pathname = '/about'
<Route path='/about' component={About} />      // renders <About/>
<Route path='/contact' component={Contact} />  // renders null
<Route component={Always} />                   // renders <Always/>

// v5.1+ alternative to <Route path="/about" component={About} />
<Route path="/about">
  <About />
</Route>

import React from 'react';
import { render } from 'react-dom';
import { BrowserRouter, Route } from 'react-router-dom';

const Hello = () => (
Hello, World!
);

const App = () => (
    <BrowserRouter>
        <Route path="/" component={Hello} />
    </BrowserRouter>
);

render(<App />, document.getElementById('root'));

Example #0

A <Router> may have only one child element in v4

...
const App = () => (
    <BrowserRouter>
        <Route path="/" component={Home} />
        <Route path="/about" component={About} />
    </BrowserRouter>
);
...

Uncaught Error: A <Router> may have only one child element
at invariant (browser.js:38)
at Router.componentWillMount (Router.js:73)
at callComponentWillMount (react-dom.development.js:6370)

Multiple <Router> children must be wrapped in v4 (they're OK in v5)

...
const App = () => (
    <BrowserRouter>


            <Route path="/" component={Home} />
            <Route path="/about" component={About} />

    </BrowserRouter>
);
...

...
const App = () => (
    <BrowserRouter>
        <Route path="/" component={Home} />
        <Route path="/about" component={About} />
    </BrowserRouter>
);
...

Inclusive Routing (v4+ default)

...
const App = () => (
    <BrowserRouter>
        <Route exact path="/" component={Home} />
        <Route path="/about" component={About} />
    </BrowserRouter>
);
...

Inclusive Routing use case

const App = () => (
    <BrowserRouter>
        <header>
            <Route path="/user" component={UserMenu} />
        </header>
        <main>
            <Route exact path="/" component={Home} />
            <Route path="/user" component={UserContent} />
        </main>
    </BrowserRouter>
);

Exclusive Routing

import { BrowserRouter, Route, Switch } from 'react-router-dom';

const App = () => (
    <BrowserRouter>
        <Switch>
            <Route path="/users/add" component={UsersAdd} />
            <Route path="/users" component={Users} />
            <Route path="/" component={Home} />
        </Switch>
    </BrowserRouter>
);

Route path array (v5)

// Instead of this
<Switch>
    <Route path="/user" component={User} />
    <Route path="/profile" component={User} />
</Switch>

// You can use an array in v5
<Route path={['/user', '/profile']} component={User} />

Navigation components

• Link
• NavLink
• Redirect

Link

<Link> component is used to create links in your application

<Link to='/'>Home</Link>

When a <Link> is rendered, an <a> will be rendered in HTML

Home

Now we are ready to revisit our BrowserRouter & HashRouter friends!

• BrowserRouter on a Static Page Example #6
• HashRouter on a Static Page Example #7
• BrowserRouter on a Dynamic Server Example #8

NavLink

<NavLink> is a special type of <Link> that can style itself as “active” when its to prop matches the current location

// when location.pathname = '/about'
<NavLink to="/about">About</NavLink>  // 'active' class is added by default
<NavLink to="/about" activeClassName="special">About</NavLink>
<NavLink to="/about" activeStyle={{
    fontWeight: bold,
    color: orange
}}>About</NavLink>

<NavLink> analyses its current location, just like <Route> does.
Thus the same caveats:

<Switch>
    <Route exact path="/" component={Home} />
    <Route path="/about" component={About} />
    <Route path="/contacts" component={Contacts} />
</Switch>

Redirect

When <Redirect> is rendered it navigates to a new location.
Current location is replaced in the history stack (replace by default)

<Redirect to="/about" />

<Redirect to={{
    pathname: '/login',
    search: '?utm=your+face',
    state: { from: currentLocation }
}}>

<Redirect from> within a Switch

<Switch>
    <Route path="/new" component={New} />
    <Redirect from="/old" to="/new">
</Switch>

<Redirect exact> and <Redirect strict>

<Switch>
    <Route path="/new" component={New} />
    <Redirect exact strict from="/old/path/" to="/new">
</Switch>

Override the default repalce

<Redirect push to="/about">About</Redirect>

• Redirect from Legacy URL Example #14
• Not Found (404) page using Redirect Example #15
• Not Found page using Route with no path Example #16
• Not Found page using Route with * path Example #17

Route render methods and props

Route render methods

There are 3 ways to render something with a <Route>:

• <Route component>
• <Route render>
• <Route children>

P.S. You'll have to choose

Route props

All the 3 render methods will be passed the same 3 route props:

• match
• location
• history

match

object contains information about how a <Route path> matched the URL.

props: {
    match: {
        path: '/about/:name', // The path pattern used to match.
        url: '/about/joe',    // The matched portion of the URL.
        isExact: true,        // true if the entire URL was matched.
        params: {             // Key/value pairs parsed from the URL,
            name: 'joe'       // corresponding to the dynamic segments
        }                     // of the path

    }
}

location

object contains current location and passed state

props: {
    location: {
        key: 'ac3df4',                   // not with HashHistory!
        pathname: '/somewhere'
        search: '?some=search-string',
        hash: '#howdy',
        state: {
            [userDefined]: true
        }
    }
}

history

object refers to the history package, which is one of only 2 major dependencies of React Router (besides React itself), and which provides several different implementations for managing session history in JavaScript in various environments:

• Browser history
• Hash history
• Memory history

https://github.com/ReactTraining/history

history

history: {
    length: 10              // The number of entries in the history stack
    action: 'PUSH'          // The current action (PUSH, REPLACE, or POP)
    location: {}            // The current location object
    push(path, [state])     // Pushes a new entry onto the history stack
    replace(path, [state])  // Replaces the current entry on the history stack
    go(n)                   // Moves the pointer in the history stack by n entries
    goBack()                // Equivalent to go(-1)
    goForward()             // Equivalent to go(1)
    block(prompt)           // Prevents navigation (see the history docs)
}

<Route component> with match parameter

<Route path="/user/:username" component={User}/>

const User = ({ match }) => {
    return
Hello {match.params.username}!
}

Custom match parameters

// Set custom match parameters in the Route
<Route path="/:company/:division" component={About}/>

// Access the value in component like so:
About {match.params.division} division of {match.params.company}

path can be any valid URL path that path-to-regexp understands.

https://www.npmjs.com/package/path-to-regexp

Custom match parameters support regexp matches

/optional/:param?               //  /optional, /optional/foo
/optional/:param*               //  /optional, /optional/foo/, optional/foo/bar
/optional/:param+               //  /optional/foo/, optional/foo/bar
/number/(\d+)	                //  /number/1, 123, 12345
/number/(\d{1,3})               //  /number/123
/phone/(\d{3})-(\d{3})-(\d{4})	//  /phone/067-123-4567
/date/:iso(\d{4}-\d{2}-\d{2})   //  /date/2018-12-31, ISO 8601 format date
/time/:hh(\d{2})::mm(\d{2})     //  /time/10:45
/:key/:value(\d+)               //  /iq/80, /weight/150

https://pshrmn.github.io/route-tester/

<Route render>

// Inline rendering
<Route path="/home" render={() =>
Home
}/>

// Wrapping, passing data
const BooksList = ({ books }) => (

    {books.map(book => (
{book.title}
))}
);

const BooksListWithDataPassed = (props) => {
    const books = [ { id: 1, title: 'bukvar'}, ... ];       // data
    return (<BooksList {...props} books={books} />);
}

<Route path="/books" render={BooksListWithDataPassed} />

<Route children>

// children is rendered always, but when it didn't match, match is null
const RenderMeAnyway = ({ match }) => (
    match
        ? (
I matched!
)
        : (
I didn't match, but still rendered
)
);

<Route path="/match" children={RenderMeAnyway} />

Protected Route

const Login = () => (
You must log in
);
const Admin = () => (
Welcome to admin zone
);

const ProtectedRoute = (props) => (
    authService.checkAuth()
        ? (<Admin {...props} />)
        : (<Redirect to="/" />)
);

const App = () => (
    <Router>
        <Route exact path="/" component={Login} />
        <Route path="/admin" render={ProtectedRoute}/>
    </Router>
);

Nested Routes

const App = () => (
    <Router>
        <Route path="/tacos" component={Tacos}/>
    </Router>
);

const Tacos  = () => (
    <Route path="/tacos/carnitas" component={Carnitas} />
);

Nested Routes with match

const App = () => (
    <Router>
        <Route path="/tacos" component={Tacos}/>
    </Router>
);

const Tacos  = ({ match }) => (
    <Route path={match.url + '/carnitas'} component={Carnitas} />
);

withRouter()

The match, location and history props are only available to the component immediately rendered by Route. In case you need to access them in a deeper level component you may either forward them down in props, or use withRouter. withRouter HOC will pass the closest Route's match, location, and history props to the wrapped component whenever it renders.

withRouter()

import React, { Component } from 'react';
import { withRouter } from 'react-router';

class ShowTheLocation extends Component {
    render() {
        const { match, location, history } = this.props

        return (
You are now at {location.pathname}
);
    }
}

export default withRouter(ShowTheLocation);

Navigate programmatically

import React, { Component } from 'react';
import { withRouter } from 'react-router-dom';

class UseHistory extends Component {
    goAway = () => this.props.history.push('/away');

    render() {
        return (
            <button onClick={this.goAway}>Go Away</button>
        );
    }
}

export default withRouter(ShowMatchUseHistory);

React Router API Hooks

import { useRouteMatch, useLocation, useHistory, useParams } from 'react-router-dom';

const DeepComponent = () => {    // not a "route component", far deep from Route
    const match = useRouteMatch();
    const location = useLocation();
    const history = useHistory();
    const params = useParams();

    return (
        <>
            <div>match.path: {match.path}</div>
            <div>location.pathname: {location.pathname}</div>
            <div>params.answer: {params.answer}</div>

            <button onClick={() => history.push('/home')}>Go Home</button>
        </>
    );
};

Transition Animation

import { TransitionGroup, CSSTransition } from "react-transition-group";

<Route
  render={({ location }) => (
    <TransitionGroup>
      <CSSTransition key={location.key} classNames="fade" timeout={5000}>
        <Switch location={location}>
          <Route path="/" exact component={Home} />
          <Route path="/about" component={About} />
        </Switch>
      </CSSTransition>
    </TransitionGroup>
  )}
/>

Thank You

Oleksiy Лёша Dubovyk

github.com/dubbha/react-router-lecture
github.com/dubbha/react-router-examples
